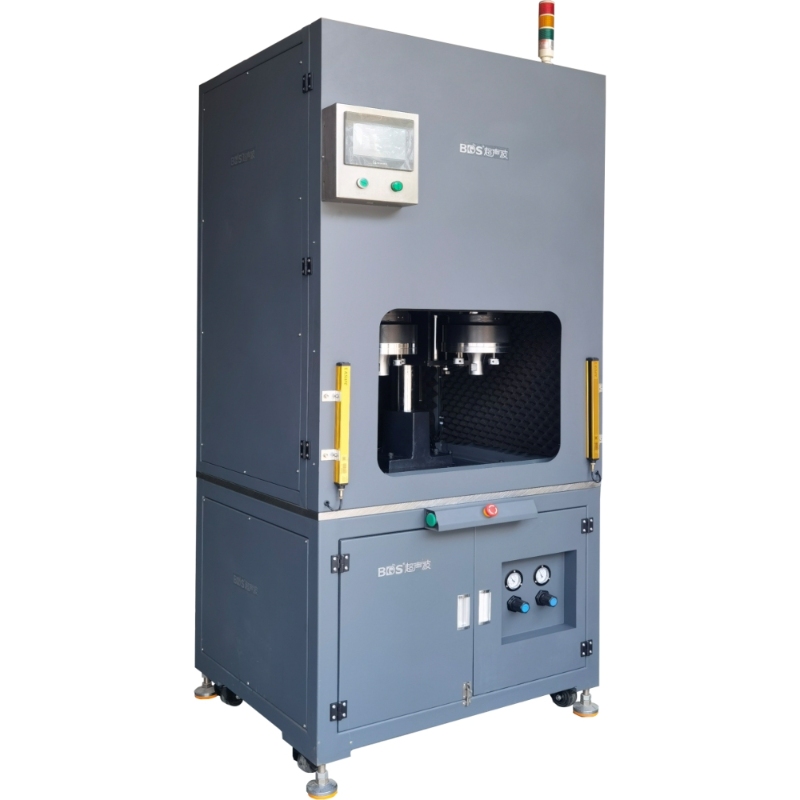

Customized Ultrasonic Welding Machine BDS-EDGJ15-FB001

    The BDS-EDGJ15-FB001 ultrasonic welding machine is designed for precision welding of thermoplastic materials.With ultrasonic power of 11200W and frequency of 15kHz .Its versatility makes it suitable for various industries, including automotive, electronics, medical and more.

Consult now
Product Description

Features:

l3 Welding Modes adjustable:  Time Mode, Hand Mode, and Continuous Vibration Mode, providing flexibility for various welding applications.

lAutomatic Frequency Tracking for optimal operation.

l With self-diagnostic capabilities and automatic post-welding data storage, ensuring efficient operation and easy access to welding

    data.

lAdvanced technology to adjust the amplitude precisely for optimal welding results.

lSafeguard your data with password protection, preventing unauthorized access and modifications.

lComprehensive safety features including phase protection, voltage protection, current protection, temperature protection, and overload protection.


Specifications

Model

BDS-EDGJ15-FB001

Power Supply

190-265VAC

Frequency

15kHz

Ultrasonic Power

11200W

Air Supply

0.4-0.8Mpa

Time Control

0.01-9.99 seconds

Welding Capability

Ф350

Stroke

100mm

Display Controller

LCD Display ,32BitMCU

Operating Temperature

5℃-40℃

Outside dimensions

850×1000×2300 (mm) (L×W×H)

N.W

130kg
