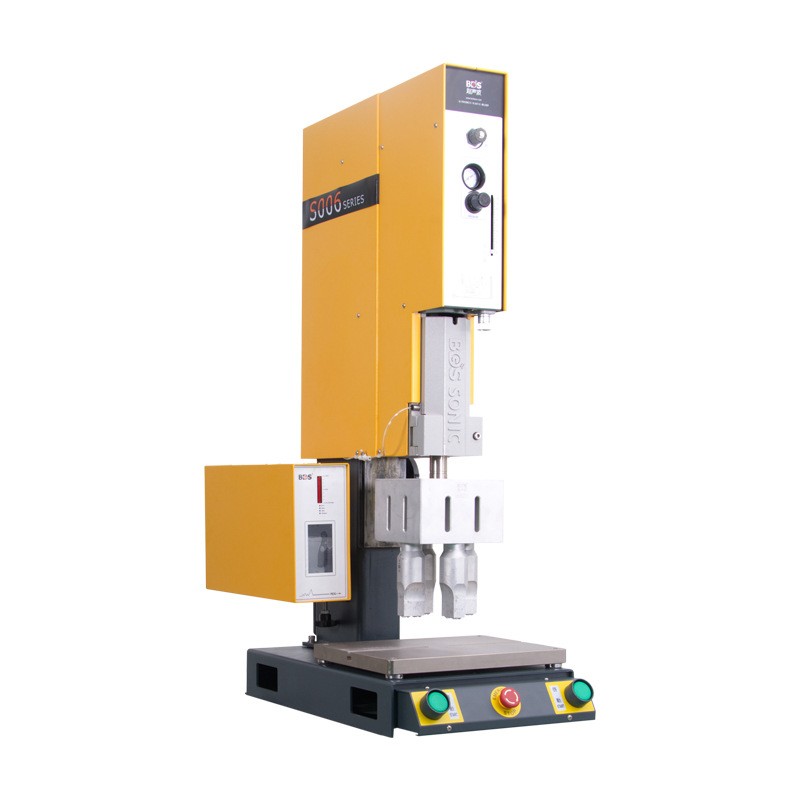

The BDS ADG-S006 bench press design ultrasonic welding machine is available in 20kHz or 30kHz depending on welding requirements.The machine is versatile, high-quality and easy-to-use for a variety of plastic welding applications.
Features:
l5 welding modes for variety applications:
① Time ② Energy ③ Power ④ Absolute depth ⑤Relative depth .
l3 trigger modes for precise control:
① Time②Pressure③Depth .
lPassword protection to prevent unauthorized use.
lAutomatic frequency tracking to ensure optimal welding results.
lFree amplitude adjustment to meet different application needs.
Specifications | ||||
Model | ADG-S006 | |||
Frequency | 20kHz or 30kHz selectable | |||
Input Voltage | 220V | |||
Ultrasonic Power | 1000W | 1500W | 2000W | 3000W |
Welding Capability | 110 m/mφ | 150 m/mφ | 200 m/m φ | 280m/mφ |
Time Setting | 0.001-9.999seconds | |||
Energy Setting | 1J - 9999J | |||
Pressure Setting | 1 kg – 220kg | |||
Depth Setting | 0.001mm–100.000mm /80.000mm | |||
Amplitude | 5~100μm | |||
Stroke | 100mm | |||
Worktable size | 500mm x 300mm | |||
Welding records | Up to 1000 welding records can be stored and exported to a USB drive | |||
Outside dimensions | 720x450x1300(mm)(L×W×H) | |||
G.W | 110kg | |||
